IQF Frozen Diced Mango Processing Line

IQF Frozen Diced Mango Processing Line

Frozen mango chunks are a core ingredient in the ice cream, yogurt, juice, and baking industries. However, mangoes are soft and prone to browning, placing high demands on the processing.

Gelgoog frozen diced mango processing line integrates dicing and rapid freezing technologies.It provides customers with solutions from whole mangoes to high-quality, individually frozen mango chunks. Gelgoog frozen mango processing is efficient, hygienic, and has low loss. It is suitable for export-oriented fruit and vegetable processing plants, frozen fruit suppliers, and large-scale pre-processed fruit and vegetable enterprises.

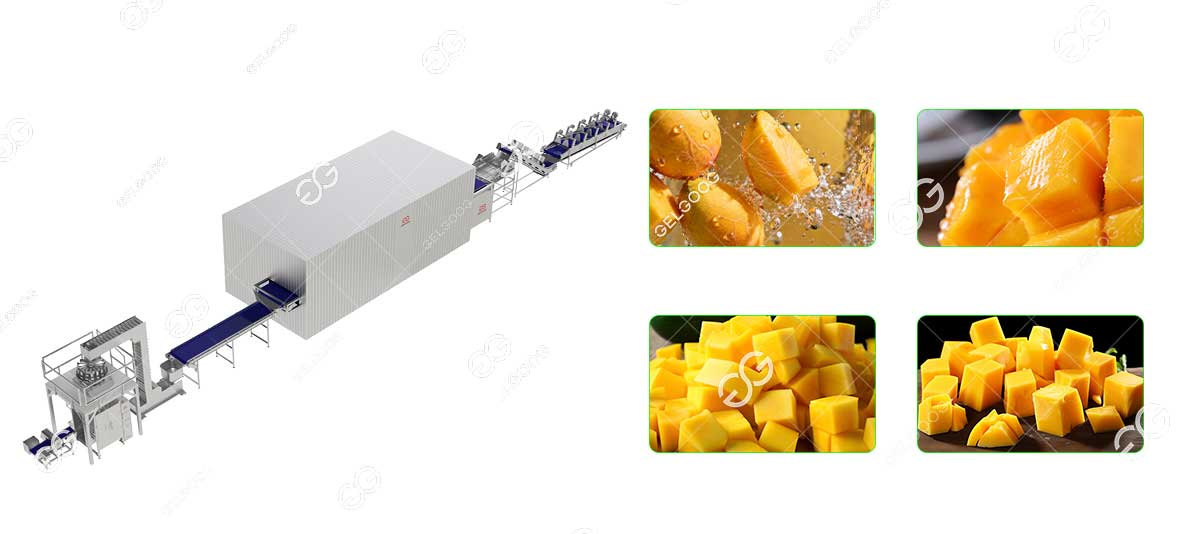

frozen diced mango processing

Frozen Mango Processing Flow Chart

Feeding → Washing → Peeling and Pitting → Dicing → Blanching → Cooling → Air Drying → Pre-cooling → Quick Freezing → Packaging → Refrigeration

  1. Washing: Gentle bubble washing removes surface dust and impurities.
  2. Peeling and Pitting: Efficiently removes the mango peel and removes the pit by halving.
  3. Dicing: The mango is cut into uniformly sized pieces according to the set dimensions.
  4. Blanching: Inhibits enzymatic browning, maintaining the golden color of the mango pieces.
  5. Air Drying: Removes surface moisture from the mango pieces, preventing them from sticking together during quick freezing.
  6. Pre-cooling: To improve quick-freezing efficiency, the fruit is pre-cooled to below 15℃.
  7. Quick Freezing: The mango pieces are quickly frozen using a fluidized bed freezer.
  8. Refrigeration: The packaged mangoes are stored in a low-temperature cold storage.

Frozen Mango Processing Machine

Mango Washing Machine

  • Clean: The mango washing machine comes with a removable splash guard. This prevents water from splashing out, ensuring a clean production environment.
  • Thorough Cleaning: Bubble washing machines or soft-brush washing machines are available upon request. These not only remove dust from the mango surface but also eliminate insect eggs.

Mango Peeling Machine

  • Design Details: After peeling, the Mango peeling machine lowers its height.This reduces the impact of the falling mango, preventing damage to the flesh. The conveyor belt is made of soft PP material, which won’t harm the fruit.
  • Adjustable: The peeling speed and thickness of the Mango peeling machine are adjustable.Suitable for various types of mangoes.

Mango Cube Cutting Machine

  • High Quality: The diced mango cutting machine cuts mango flesh into uniform cubes. Clean cuts minimize waste.
  • Customizable: The mango cube cutting machine allows for adjustable dicing sizes. It can cut fruit cubes from 3-12mm in size, all in one pass.

Diced Mango Frozen Machine

  • High efficiency: The diced mango freezing machine can lower the core temperature to below -18°C within 30 minutes.
  • Preservation: The diced mango freezing machine’s rapid freezing produces tiny ice crystals. These small ice crystals do not damage the mango’s cellular structure, preserving its flavor and nutrients.

Frozen Mango Processing Advantages

  • High Quality: IQF quick-freezing technology completes freezing within 30 minutes, ensuring the mango’s texture remains intact.
  • Automation: The frozen mango processing line is fully automated, requiring no manual intervention. This reduces the risk of human contamination and lowers labor costs.
  • Multi-functional: The frozen diced mango processing machine can also process pineapple chunks, avocado chunks, and more.
  • Hygiene: The frozen mango processing machine is made of food-grade stainless steel. Its quick-release structure facilitates cleaning and maintenance. It meets world-class food safety standards and export requirements for frozen fruit.
  • Comprehensive Service: We provide a one-stop service from site planning, installation and commissioning, operation training to maintenance. We offer not just machines, but a comprehensive partnership encompassing installation, training, and maintenance.
