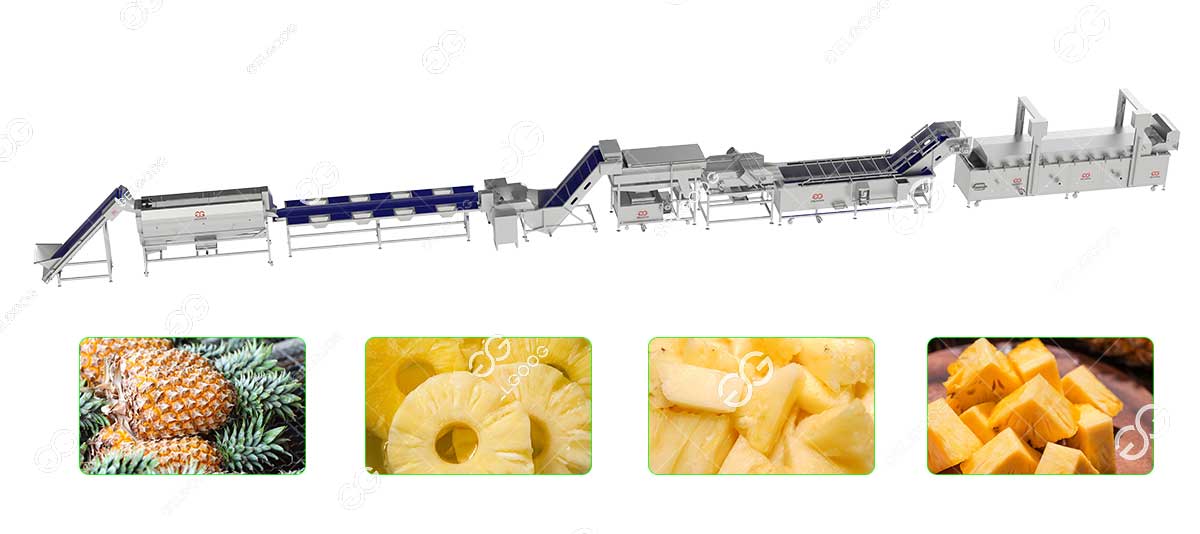

Frozen Pineapple Chunks Freezing Production Line
The pineapple chunks freezing machine is specifically designed for producing high-quality IQF pineapple chunks. The frozen pineapple production line includes washing, peeling and corer, slicing, chunking, quick-freezing, and packaging machines. The quick-frozen pineapple chunks are uniform in size and brightly colored. Frozen pineapple chunks are the perfect ingredient for the beverage, yogurt, ice cream, and baking industries.
Frozen Pineapple Production Line Flow Chart
Grading → Feeding → Washing → Peeling and Coreding → Slicing → Dicing → Blanching → Pre-cooling → Air Drying → IQF Quick-Freezing → Packaging → Refrigeration
- Grading: Pineapples suitable for processing are selected using a pineapple sorting machine.
- Feeding: Pineapples are placed in a water tank. Good quality pineapples float on the surface, while damaged fruit sinks. Pineapples are transported via two tracks; good pineapples are moved to the next process.
- Washing: The frozen pineapple production line uses a bubble cleaning machine. The tumbling action of the bubbles thoroughly removes dirt and dust from the pineapple peel.
- Peeling and Coreding: The pineapple peel and core are removed, leaving the flesh intact.
- Slicing/Dicing: The pineapple flesh is first sliced, then cut into chunks or cubes.
- Blanching: Reduces enzyme activity, protects the pineapple’s color, and prevents browning.
- Pre-cooling/Dehydration: Lowers the temperature of the pineapple chunks and removes surface moisture. Improves quick-freezing efficiency while ensuring distinct, separate frozen pineapple pieces.
- IQF Quick-Freezing: Under the impact of a strong cold airflow at -30°C to -35°C, the pineapple chunks are individually and rapidly frozen in a short time.
- Packaging: Weighing and packaging can be done using a multi-head scale.
Pineapple Chunks Freezing Machine
Pineapple Washing Machine
- Thorough Cleaning: Bubble cleaning machines generate a large number of bubbles. The pineapple tumbles continuously in the water, removing surface dirt and grime. The bubbles explode upon contact with the pineapple, effectively removing pesticide residues.
- Water Circulation: Dirt settles into the bottom filtration system. Water is reused through the filter. Environmentally friendly, reducing water costs.
Pineapple Peeling And Core Removing
- High efficiency: A pineapple peeling machine can process 700-1000 pineapples per hour.This far exceeds the efficiency of manual peeling.
- Customization: The pineapple peeling machine is available in fully automatic and semi-automatic versions. Equipment parameters can be adjusted according to the size of your pineapples.
Pineapple Chunks Freezing Machine
- Continuous Production: The frozen pineapple production line is suitable for continuous production.Suitable for large-scale fruit processing plants.
- High Efficiency: The pineapple chunk freezing machine can complete quick-freezing in 30 minutes.
- High Quality: The small ice crystals produced by rapid freezing do not damage the pineapple’s structure, preserving its texture. The IQF quick-freezing machine keeps each pineapple individually frozen, preventing them from sticking together.
Pineapple Chunks Packaging Machine
- High efficiency: Multi-head scales offer faster packaging speeds than traditional weighing methods, improving production line efficiency.
- Accurate weighing: Multi-head scales use computer calculations for weighing and packaging, resulting in high accuracy and minimal error.
Fruit And Vegetable Peeling Equipment
Commercial Pineapple Peeling And Coring Machine
Fruit And Vegetable Washing Machines
Commercial Pineapple Washing Cleaning Machine
Fruit And Vegetable Freezing Machine Manufacturer
Fruit Iqf Fluidization Fluidized Quick Freezing Process Machine
Frozen Pineapple Production Line Advantages
- High Quality: IQF quick-freezing technology allows for individual quick-freezing of pineapple chunks.This preserves the original taste, color, and nutrients of the pineapple. Suitable for high-end frozen foods, juices, and desserts.
- Customization: Gelgoog can customize a frozen pineapple production line to meet your factory size and production capacity needs. The parameters of each piece of equipment can be set according to your pineapple requirements.
- One-Stop Service: Gelgoog is not only your equipment supplier but also your comprehensive partner. We provide a one-stop service from site planning, installation and commissioning, operation training to maintenance.
- Safety: The frozen pineapple production line is made of food-grade stainless steel. The equipment is robust and corrosion-resistant, with a reasonable structural design. Disassembly is simple, facilitating daily cleaning and maintenance, and the equipment has a long service life.
- Long Shelf Life: Using Gelgoog pineapple chunks freezing and packaging machines, the product shelf life can reach 24 months. Quick-frozen mango chunks can be supplied year-round, improving economic efficiency.
