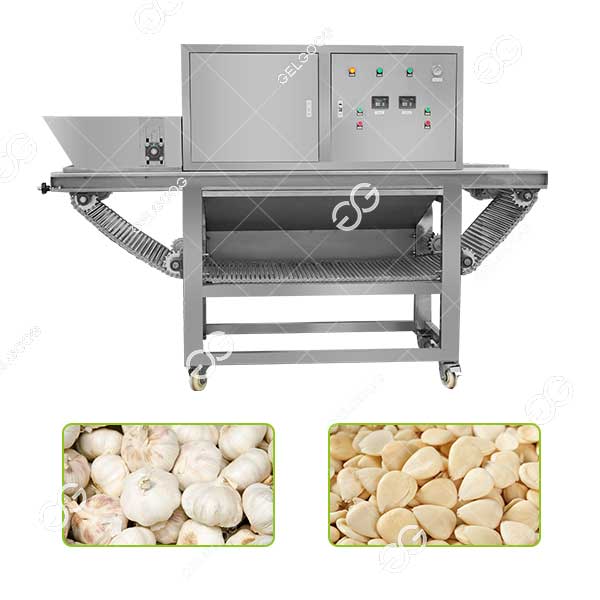

Automatic Garlic Skin Peeling Machine Manufacturer

Garlic Peeling Machine Features

• Thorough Peeling: The commercial garlic peeling machine uses dry pneumatic peeling. No water or blades are needed, reducing business costs and improving product quality. The peeling rate can reach over 95% without damaging the garlic cloves. The garlic cloves were intact with high qualification rate.
• Intelligent Control: The garlic peeling machine is equipped with a PLC intelligent control system. Customers can set parameters such as air blowing intensity according to the garlic variety, dryness, and size.
• Hygienic: The garlic peeling machine features a fully enclosed design. This prevents garlic peels from flying around and secondary contamination of the clean garlic cloves.
• Safe: The entire industrial garlic peeling machine is made of food-grade stainless steel, meeting world-class food safety standards.
• Easy Maintenance: The garlic peeling machine uses a quick-release structure, making disassembly simple. This facilitates daily maintenance, eliminates unsanitary areas, and extends the machine’s lifespan.

Garlic Peeling Machine Work Pricinple

1. Feeding: Garlic are processed into individual garlic cloves by the clove-breaking machine. The garlic cloves are then conveyed into the garlic skin peeling machine.
2. Peeling: The automatic garlic peeling machine separates the garlic skin using compressed air.
3. Thorough Peeling: During the process, compressed air continuously tumbles the garlic, ensuring continuous peeling without any blind spots.
4. Garlic Skin Collection System: The detached garlic skins are collected by a suction system, preventing secondary contamination and ensuring a hygienic factory environment.
5. Color Sorting: Can be equipped with a color sorting machine to remove defective garlic (moldy, blemishes, unpeeled). Improve the marketability of the finished garlic cloves.

Garlic Peeling Machine Advantages

• High Capacity: The garlic skin peeling machine can operate continuously for 24 hours. With an hourly output of 100-3000 kg, it is suitable for small, medium, and large processing plants, wholesalers, and exporters.
• Automation: The industrial garlic peeling machine is highly automated. It can be used as a standalone machine or as the core equipment in a garlic peeling production line. It reduces labor costs and improves finished product quality.
• Flexibility: By adjusting parameters, the commercial garlic skin peeling machine can adapt to garlic harvested from different regions, varieties, and seasons.
• Easy Operation: The garlic peeling machine has a small footprint and is shipped as a complete unit without installation. Equipped with a PLC intelligent control system, parameters are pre-set, and it can be put into production immediately.
• Patent Protection: Gelgoog holds multiple technology patents. The automatic garlic peeling machine is more energy-efficient than similar products while peeling garlic efficiently. Its excellent mechanical structure and sound insulation design result in lower factory noise levels compared to other equipment.

Technical Data

Content	Unit	1t/h garlic peeling machine	3t/h garlic peeling machine
Size	mm	2565*1265*2285	3480*1328*2285
Total power	kw	3.75	5.25
Air compressor power	kw	45	55
Rated air pressure	Mpa	0.8	0.7



---
