Ginger Carrot Slice Cutting Machine 150-800 Kg/H

The carrot and ginger cutting machine can slice and shred ginger. The cutting thickness is adjustable, and it can cut 150-800 kg of ginger per hour. It can be combined with ginger washing, dehydration, and grinding machines to form a complete ginger solution.

Carrot Cutting Machine Features

  • Powerful: The carrot and ginger slicing machine is equipped with a high-efficiency motor. This provides stable power to the rotating blade, ensuring a smooth and efficient cutting process.
  • Customizable: The ginger slice cutting machine can slice into flat pieces from 1.5-3mm. We can customize wavy blades, Julienne blades, and blade discs to meet your specific cutting needs.
  • Safe and Corrosion-Resistant: The ginger slicing machine is made of food-grade stainless steel. It not only meets world-class food safety standards but is also robust and corrosion-resistant. The machine features an emergency stop button to ensure operator safety.
  • Easy Maintenance: The ginger slice cutting machine adopts a modular design. Disassembly is simple, facilitating daily cleaning and maintenance, and extending the machine’s lifespan.

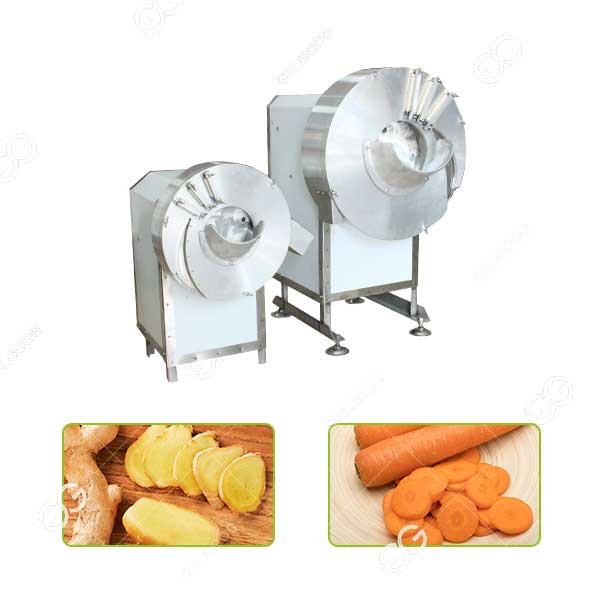

slice cytting machine

Carrot Cutting Machine Work Pricinple

  1. Feeding: The ginger slice cutting machine supports feeding multiple ginger or carrot slices at once.
  2. Rotation: The ginger and carrot cutting machine is equipped with a blade disc. Once turned on, the blade disc rotates at high speed, slicing the ginger into uniform slices or shreds.
  3. Thickness Adjustment: The blades of the carrot and ginger slice cutting machine are replaceable, and the blade disc gap is adjustable. The larger the gap between the blade disc and the feed inlet, the thicker the slices; the smaller the gap, the thinner the slices.
  4. Discharge: The cut slices or shreds are discharged through the discharge port. The cutting process is synchronized with the feeding speed.

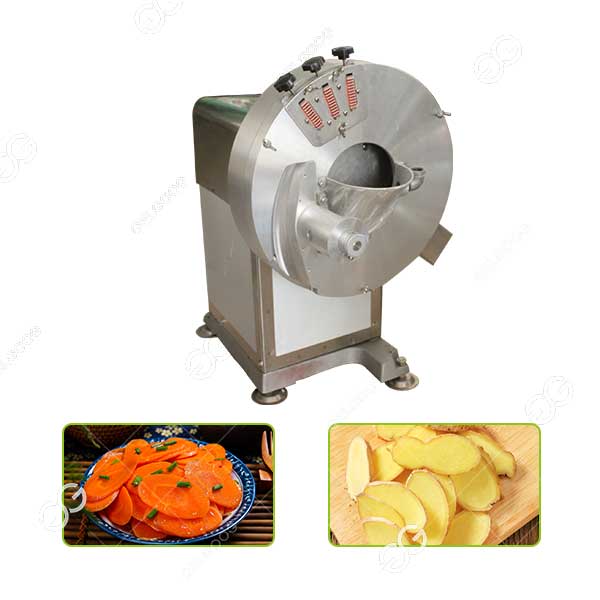

ginger slicing machine

Carrot Cutting Machine Advantages

  • Multi-functional: The ginger and carrot cutting machine can be used to cut potatoes, turmeric, yams, bananas, etc. It boasts high equipment utilization, meeting diverse processing needs.
  • Flexible use: The ginger slice cutting machine can be used as a standalone unit.It can also be combined with ginger washing, dehydration, and grinding machines to form a continuous production line. Gelgoog focuses on fruit and vegetable solutions, helping you upgrade your industry.
  • Extensive industry experience: Gelgoog has been deeply involved in the food machinery field for 15 years. We understand the characteristics and processing requirements of different materials and hold numerous technology patents. The Gelgoog carrot and ginger cutting machine’s cutting effect far surpasses similar products on the market.
  • One-stop service: From solution consultation and equipment installation and commissioning to operation training and after-sales maintenance, we provide comprehensive professional technical support. We ensure your equipment is always in optimal operating condition.

Technical Data

Model GG-503 GG-501
Thickness of strip 1.5mm /2mm 1.5-5mm adjustable
Length of strip longest of 20cm
Specification of slice 1-8mm 1-8mm
Capacity 150-250kg/h 500-800kg/h
Power 220V, 1HP 220V, 1HP
Dimension 540*400*560mm 650*550*880mm
