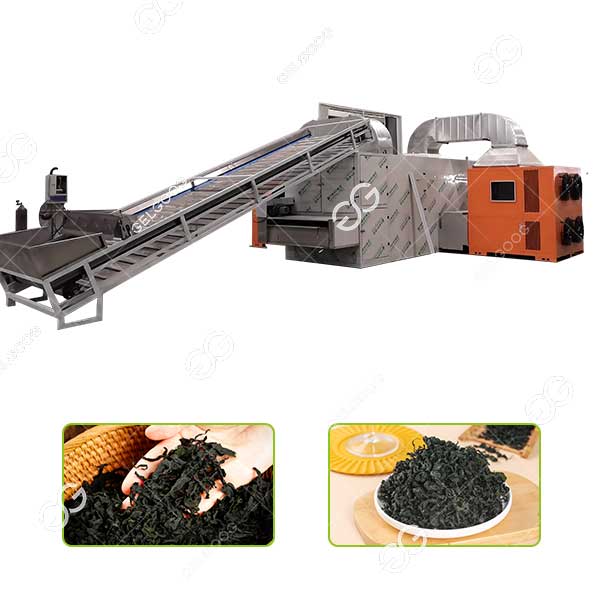

Commercial Large Kelp Drying Processing Machine Supplier

Kelp Processing Equipment Feature

1. Highly Intelligent: The commercial kelp drying machine is equipped with a PLC intelligent control system. Large kelp drying machine can set and automatically adjust the kelp drying temperature, humidity, and belt speed (drying time).
2. Highly Automated: From loading, spreading, drying, to discharging, the kelp processing equipment requires only one or two people to operate and control it. This eliminates the need for manual intervention during the processing, reducing labor costs. It can operate 24 hours a day, increasing production.
3. Multifunctional: The large kelp drying machine can dry a variety of materials by adjusting the drying temperature, humidity, and time. The kelp drying machine is suitable for dehydrating a variety of vegetables.For example, ginger, garlic, cabbage, onions, Sichuan peppercorns, and wood ear mushrooms.
4. Invironmentally Friendly: The commercial kelp drying machine achieves zero emissions during the drying process, making it environmentally friendly.
5. High-quality finished product: Kelp processing equipment effectively preserves the natural color and nutrients of kelp.This enhances the product’s commercial value.The processing process ensures uniform heating, resulting in consistent quality in the finished dried kelp.
6. Easy Disassembly: The kelp drying machine has a compact structure and takes up little space. It is easy to install and disassemble, and can be installed indoors or outdoors.
7. Safe Material: The large kelp drying machine is made of 304 stainless steel, which is sturdy and durable. It will not contaminate materials and is safe and reliable.





Kelp Processing Equipment Work Principle

1. Loading and Spreading: Processed wet kelp is conveyed via an elevator to the top inlet of the kelp drying machine. A spreader evenly and smoothly spreads the material onto the first layer of mesh belt. A consistent thickness and width ensure uniform drying.
2. “S”-shaped Circular Drying: Driven by a variable frequency motor, the mesh belt advances at a constant speed. At the end of a layer, the kelp naturally falls and flips to the next layer. This cycle continues, completing one drying cycle.
3. Control System: The kelp processing equipment consists of two systems. One is a heat pump control system, which primarily controls the temperature and humidity within the drying chamber. The other is a mesh belt control system, which primarily controls the mesh belt conveyor speed (drying time).



Kelp Processing Equipment Advantage

• Green and Energy-Saving: The kelp drying machine is far more efficient than coal-fired or oil-fired heating systems.Energy savings reach up to 60%-70%. The drying process is emission-free and pollution-free.
• Quality Assurance: Gelgoog has many years of experience in developing fruit and vegetable processing equipment. Our mature technology ensures consistent product quality. The temperature and humidity control of the large kelp drying machine perfectly preserves the kelp’s color and texture.The finished product is of excellent appearance and highly competitive in the market.
• Safe and Durable: The main body of the kelp drying machine is constructed of sturdy materials. Material-contacting parts are made of food-grade 304 stainless steel. The kelp processing equipment is pollution-free and corrosion-resistant.The equipment has a long lifespan and low maintenance costs.
• Customized Service: Gelgoog can provide customized solutions based on your plant layout and production requirements. Our kelp processing equipment can be combined with kelp washing machines, frying machines, and other equipment.
• Comprehensive Service: We provide one-stop services, from site planning, installation and commissioning, operator training, and maintenance. Resident engineers are available in select locations to address equipment issues promptly.



Kelp Processing Equipment Suitable For

• Dehydrated vegetables: scallions, ginger, garlic, onions, carrots, cabbage, beans, potatoes, sweet potatoes, peppers, mushrooms, etc.
• Chinese herbal medicines: astragalus, honeysuckle, forsythia, kudzu root, gastrodia elata, wolfberry, hawthorn, lotus leaf, moringa leaf, mint, etc.
• Fruits: apples, figs, walnuts, nuts, dates, longan, tangerine peel, etc.
• Multi-industry applications: Widely used in food processing, agricultural product deep processing, Chinese medicinal material drying, chemical raw material processing, and other fields.

Technical Data

(Heat Pump Type) Mesh Belt Dryer Models And Parameters
Model	Material	Heat source power	Drying box size	Remark
GGLG0460AE	The contact belt is 304. The rest is carbon steel.	Equipped with 2 25P heat pumps	6*2.2*2.5m	4-layer mesh belt width: 1.64m. Drying temperature: 40-75°C
GGLG0480AE		Equipped with 3 25P heat pumps	8*2.2*2.5m
GGLG0410AE		Equipped with 4 25P heat pumps	10*2.2*2.5m
GGLG0412AE		Equipped with 5 25P heat pumps	11*2.2*2.5m

tips：Based on the final size, a 40-foot high cabinet can be placed.





(Gas-Fired) Mesh Belt Dryer Models And Parameters
Model	Material	Gas heat source power	Drying box size	Remark
GGLG0460AG	The contact mesh belt is 304. The rest are galvanized carbon steel	40WKcal/h	6*2.2*2.5m	4-layer mesh belt width 1.64m. Drying temperature: 60-120℃
GGLG0480AG		60WKcal/h	8*2.2*2.5m
GGLG0410AG		80WKcal/h	10*2.2*2.5m
GGLG0412AG		100WKcal/h	11*2.2*2.5m

tips：Based on the final size, a 40-foot high cabinet can be placed.





---
