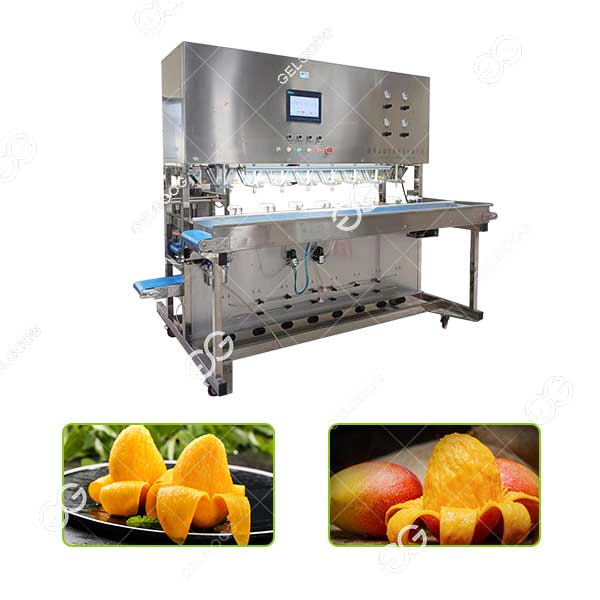

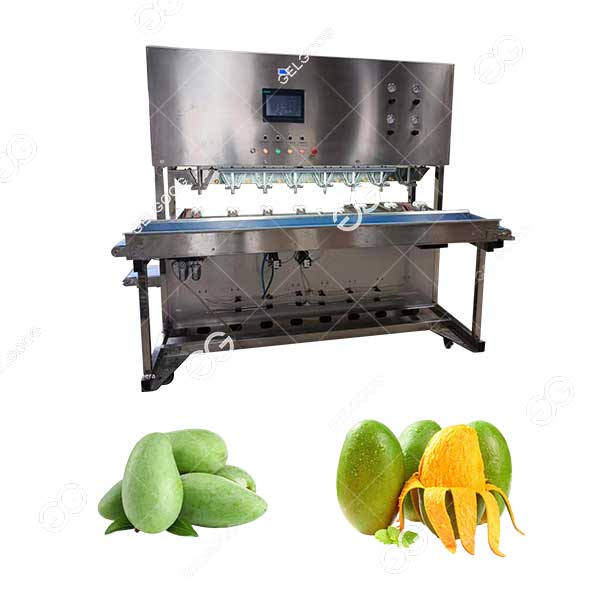

Mango Peeling Machine Features
- Increased Production Efficiency: The professional mango peeling machine can process 1000kg of mangoes per hour. Peeling a single mango takes only 15-25 seconds.
- Reduced Waste: The mango peeling line offers adjustable peeling thickness from 1.5-2.5mm. Low fruit loss reduces waste.
- Peel Separation: The mango peeling line is equipped with two conveyor belts. The pulp and peel are transported separately on different conveyor belts to avoid secondary contamination. The pulp can be directly conveyed to the next processing stage.
- Multi-purpose: The mango peeling line can automatically identify the fruit diameter. It is not only suitable for mangoes, but also for avocados, papayas, grapefruits, cantaloupes, and other fruits.
- Safe and Durable: The mango peeling machine is made of SUS304 food-grade stainless steel. The material is safe, corrosion-resistant, and durable.
Mango Peeling Machine Work Principle
- Manual Placement: Workers place the mangoes on the mango peeling machine.One worker can handle 7 peeling machines at the same time.
- Fruit Positioning: The upper and lower fruit-mounting cylinders of the professional mango peeling machine automatically clamp the fruit. The mango enters the peeling station.
- Blade Activation: The peeling blade peels from bottom to top. The blade follows the contour of the mango surface for even peeling. After each peeling cycle, the upper and lower fruit-mounting shafts rotate once until peeling is complete.
- Fruit Discharge: After peeling, the lower fruit-mounting shaft descends at a constant speed. This reduces the drop height of the mango and minimizes damage to the fruit.
- Peel Separation: To avoid cross-contamination, the peel and pulp are discharged separately via independent conveyor belts.
Mango Peeling Machine Advantages
- Automation: The mango peeling line is equipped with a PLC intelligent control system. The mango peeling line has multiple programs. Customers can set the peeling thickness and speed according to the ripeness and firmness of the mangoes. Operation is convenient; the machine can be started with a single button.
- Intelligent: The professional mango peeling machine is equipped with an IoT system. Connecting to WiFi allows for remote operation of the machine. The mango peeling line can automatically record multiple settings. It is highly intelligent and easy to operate.
- Safe and Stable: The mango peeling machine is equipped with an emergency stop button, overcurrent protection, and leakage protection. The electrical system meets international safety standards. It supports long-term continuous operation.
- High-Quality Finished Product: The mango peeling line features a human-like design. It automatically tracks the shape and flexibly fits the mango, resulting in a beautiful finished product. We have served over 180 countries and hold multiple technology patents. The quality and stability of the Gelgoog mango peeling machine far surpasses similar products on the market.
- Integrated Shipping: To ensure machine stability, we use integrated shipping. Customers do not need to disassemble the equipment, eliminating a cumbersome installation process. It can be used directly upon arrival.
Technical Data
| Mango Peeling Machine | |
| Peeling thickness | about 1.5-2.5mm |
| Peeling speed | 15-25s（Related to the size of fruits） |
| Applicable Size | Diameter within 50-170mm;
Height within 90-300mm |
| Power | 3kW |
| Material | SUS304 stainless steel |
| Weight | 600kg |
