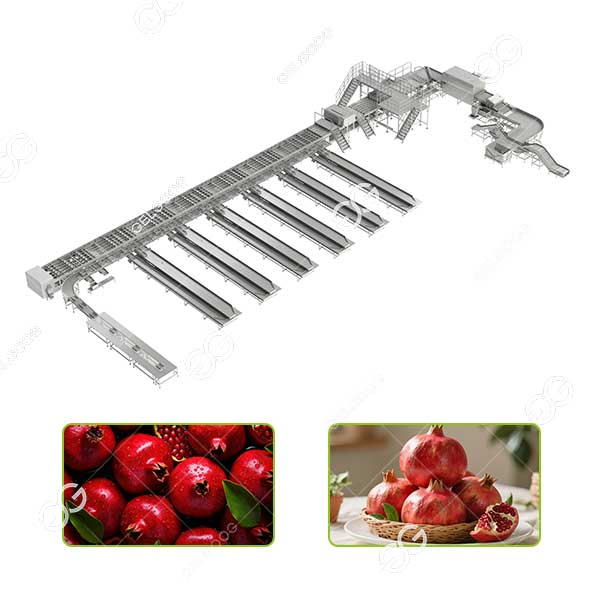

Optical Pomegranate Grapefruit Sorting Equipment 1-10t/H

Pomegranate Grading Machine Features

• High Quality: The grapefruit sorting machine grades fruit from multiple dimensions, including appearance and internal quality. Grading results are accurate and highly standardized, meeting the demands of the high-end market.
• Automation: The pomegranate sorting machine is highly automated. Computers can quickly analyze grading results.No manual intervention is required, reducing labor costs.
• Continuous Operation: The pomegranate sorting equipment is equipped with a cooling system.It meets the needs of large-scale factories for long-term continuous production.
• Flexibility: It can be used in conjunction with fruit washing machines, pomegranate peeling machines, and juicing machines.This forms a pomegranate washing and grading processing line or a pomegranate juice processing line.
• Safety: The pomegranate sorting machine is made of food-grade stainless steel. It is easy to clean and maintain and complies with food safety production standards.

Pomegranate Grading Machine Work Pricinple

1. Feeding: Pomegranates are evenly fed into the grapefruit sorting equipment via rollers.
2. Weighing: Pomegranates enter sorting trays. Each tray is equipped with two high-precision sensors for weighing. Data is transmitted to a computer in real time.
3. Appearance Grading: The pomegranate sorting machine is equipped with multiple cameras.These cameras capture images of the pomegranates from different angles. Images are compared with a database to remove defective or blemished fruits.
4. Spectral Grading: The pomegranates are illuminated using spectral technology.This detects the ripeness, density of pomegranate arils, and sweetness/acidity of the fruit.
5. Calculation: Based on the multi-dimensional data, the pomegranate sorting machine quickly determines the final grade of the fruit.
6. Discharge: Based on the grading results, the pomegranate sorting equipment guides the pomegranates to the appropriate discharge channels for each grade.

Pomegranate Grading Machine Advantages

• High Capacity: Pomegranate sorting machines can process 1-10 tons of fruit per hour.This reduces processing costs per unit time and increases business efficiency.
• High Quality: Automated processing ensures standardized grading. Fruit specifications are consistent and stable, enhancing brand image.
• Versatile Use: Grapefruit sorting equipment is suitable for various fruits and vegetables, such as apples, pineapples, pears, and citrus fruits. High equipment utilization and high return on investment.
• Easy Operation: Pomegranate sorting machines utilize a PLC intelligent control system. Workers can operate the machine after simple training. Low reliance on manual labor makes it suitable for large-scale modern production.
• Customization: Grading standards for pomegranate sorting equipment are adjustable (diameter, grade, number of sorting machines, etc.). Gelgoog can also customize the number of grading channels and solutions according to your factory layout and grading needs.



Technical Data

Serial Number	Content	Parameters	Remarks
1	Total motor power	3.5KW	/
1.1	Fruit tray conveyor motor power	2.2KW	Variable frequency motor
1.2	Intermediate feeding motor power	0.55KW	Variable frequency motor
1.3	Feeding conveyor belt motor power	0.75KW	Variable frequency motor
2	Power supply	380V/50Hz/Three-phase	Customizable
3	Conveying speed	Adjustable	Variable speed
4	Overall dimensions(mm)	9250*1250*1300	The length is determined by the number of hierarchical levels.
5	Operating height (mm)	1040	/
6	Receiving table dimensions (mm)	3600*400*450	The length is determined by the number of hierarchical levels.



---
