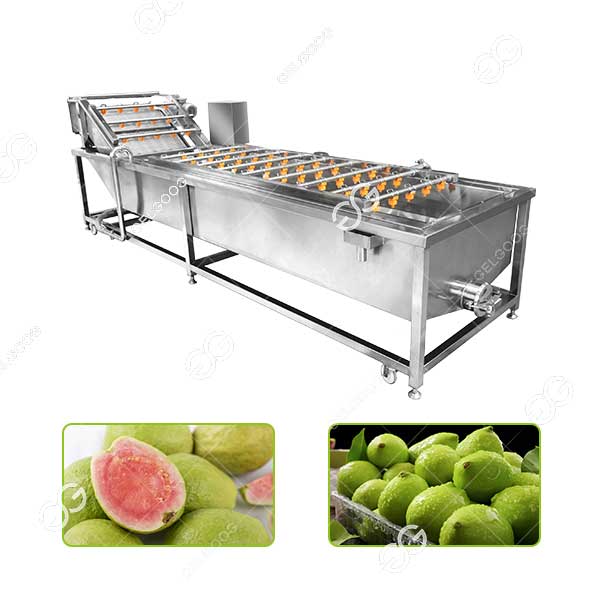

Industrial Use Pomegrante Guava Washing Machine

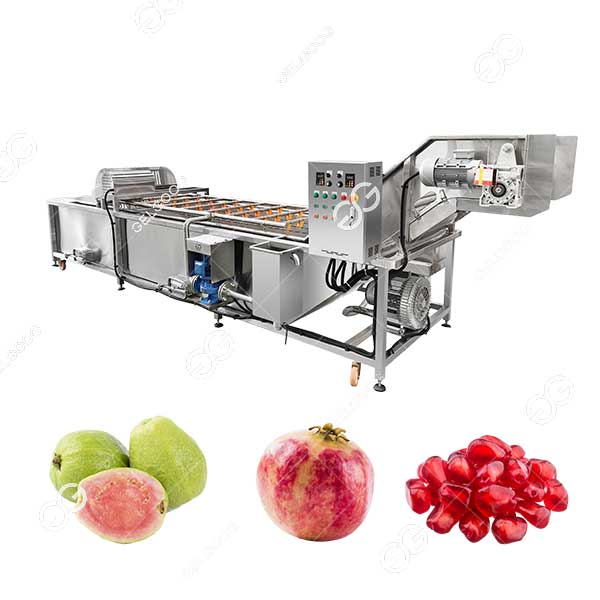

Pomegranate Washing Machine Features

• Complete Cleaning: Guava washing machines produce highly concentrated bubbles that completely cover the pomegranate surface. This ensures thorough cleaning without any blind spots, effectively removing surface dirt and pesticide residue.
• Dual Cleaning: Pomegranate washing machines are equipped with spray nozzles. While the bubbles clean the pomegranates, the spray nozzles simultaneously rinse them. Removed impurities are washed away, preventing secondary contamination.
• High Efficiency: Pomegranate cleaning machines are available in various models, covering a wide range of processing capacities. Hourly processing capacity varies from 1000-8000 kg (depending on the material). Manufacturers can flexibly choose equipment based on their production needs.
• Highly Expandable: Pomegranate washing machines are a crucial part of pomegranate processing. Pomegranate seed washing machines can be combined with pomegranate deseeding machines, sorting machines, and juicing machines. This forms a Pomegranate Juice Processing Line.
• Energy saving: The pomegranate cleaning machine is equipped with a water circulation system and a disinfection system. The cleaning water recycling rate is extremely high, significantly saving water resources and production costs.

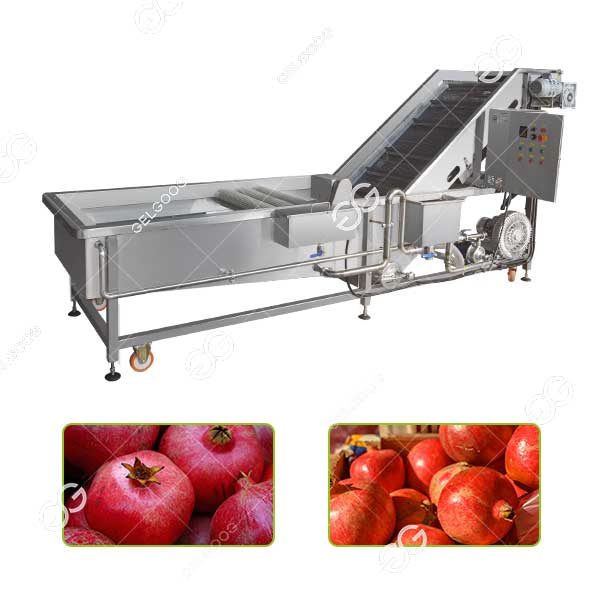

Pomegranate Cleaning Machine Work Pricinple

1. Feeding: Pomegranates can be transported to the washing line via an AGV system. If the pomegranate seeds need to be cleaned, a conveyor belt can be connected to a pomegranate peeling machine.
2. Washing: The pomegranate washing machine generates a large number of dense bubbles using an air pump. These bubbles cause the water surface to churn, bursting upon contact with the pomegranates. This effectively removes mud and dirt from the pomegranate surface.
3. Spraying: Sprayers above the Guava pomegranate washing machine rinse the fruit. This washes away any loosened or detached mud and dirt. As the pomegranates move, the water they come into contact with becomes increasingly cleaner, preventing secondary contamination.
4. Filtration: Impurities from the washing process settle at the bottom of the pomegranate washing machine. This is periodically discharged through a drain valve. The water flows through a filter screen and is recycled.
5. Discharge: The cleaned pomegranates can then proceed to the next processing stage.

Applications Of Pomegranate Washing Machine

• Pre-processing and cleaning of pomegranates (can also clean peeled pomegranate seeds).
• Cleaning of raw materials for juice processing.
• Pre-processing of frozen IQF fruits.
• Integrated fruit and vegetable pre-processing lines.
• Cleaning of fruit export packaging.
• Batch cleaning needs of fruit and vegetable processing plants.

Pomegranate Washing Machine Advantages

Pomegranate Cleaning Machine Advantages Comparison
Dimensions	Gelgoog Pomegranate Washing Machine	Ordinary/Traditional Cleaning Equipment
Thorough cleaning	The pomegranate washing machine uses a combination of bubbles and spray. It effectively removes the stubborn white film from the surface of pomegranate seeds. Achieves an extremely high level of cleanliness.	Most methods involve simple soaking or one-way rinsing. They are insufficient for cleaning adhering impurities. Easily leave hard-to-reach areas.
No damage	The pomegranate cleaning machine relies on the buoyancy of water and air bubbles. Materials are cleaned through tumbling, without causing damage throughout the process.	Brush cleaning machines can easily cause scratches or mechanical damage to the delicate surface of pomegranates.
Environmental friendly	The pomegranate washing machine is equipped with a water circulation filtration and disinfection system. This significantly reduces water consumption and wastewater discharge.	Most cleaning systems use direct discharge, resulting in huge water consumption. This leads to high operating costs and significant environmental pressure.
Safety	Made entirely of food-grade stainless steel. Cleaned pomegranate seeds can be directly fed into subsequent processing lines. Ensuring food safety.	The materials may not meet standards. It lacks continuous water disinfection capabilities. There are potential hygiene risks.
High efficiency	Automated continuous operation with high capacity (up to 8000 kg/h). The pomegranate cleaning machine can run 24 hours a day, saving a significant amount of manpower.	It has a low level of automation, relying on manual or semi-automatic operation. Its production capacity and stability are limited.
Low cost	Extremely low failure rate and simple maintenance. Low overall operating cost and quick return on investment.	High energy consumption and significant energy loss. Frequent maintenance results in high total cost of ownership in the long run.



Technical Data

Pomegranate Cleaning Machine	Power（KW）	Size（MM）	Weight（KG）	Mesh width（MM）
GGXQ3000	2.2/0.75/1.5	3100*1400*1500	500	800
GGXQ4000	4/1.1/1.5	4100*1400*1500	700	800
GGXQ5000	5.5/1.5/2.2	5100*1400*1500	900	800
GGXQ6000	5.5/1.5/2.2	6100*1400*1500	1000	800
GGXQ7000	5.5/1.5/3	7100*1400*1500	1200	800
GGXQ8000	5.5/1.5/3	8100*1400*1500	1350	800



---
