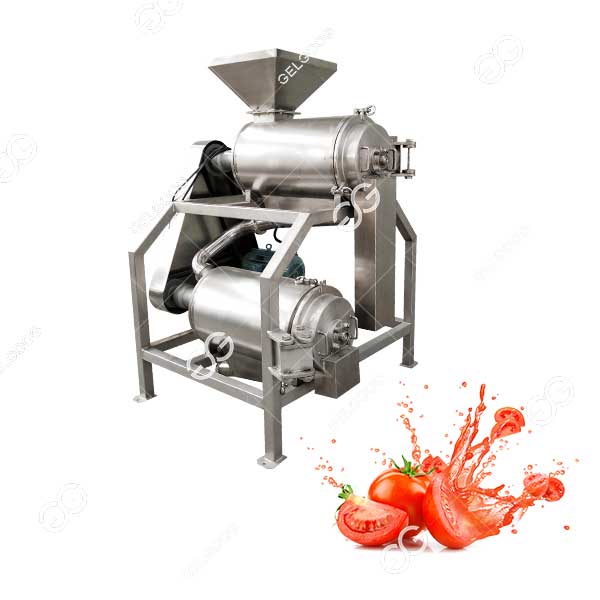

Large Commercial Tomato Pulp Machine For Sale

Tomato Pulp Machine Feature

High pulp yield: The tomato pulp machine combines high-speed rotation with a precision screen. The pulp is extremely fine, with virtually no residue.
Multi-stage pulping structure: The large tomato pulp machine can be configured with single or multiple pulping stages according to customer needs. By adjusting the screen size, the commercial tomato pulp machine can remove seeds and cores.
Safe materials: All parts of the tomato pulp machine that come into contact with tomatoes are made of 304 stainless steel. Corrosion-resistant, easy to clean, and meets food processing standards.
Easy cleaning and maintenance: Both the screen and blades are quick-disassembly. Easy daily cleaning and replacement, simple maintenance.
Wide range of applications: In addition to tomatoes, the large tomato pulp machine can also be used for pulping mangoes, strawberries, apples, kiwis, guavas, peaches, and other fruits and vegetables.

The electric motor drives the scraper to rotate at high speed via a belt, providing power for the entire pulping process.
Crushed tomatoes enter the machine through the feed inlet. The receiving tray evenly distributes the tomatoes between the scraper and the screen.
As the scraper rotates, it uses its lead angle to continuously push the tomatoes forward along the cylindrical direction, forming a spiral movement trajectory.
Under the action of rotation and centrifugal force, the tomatoes are squeezed and crushed by the scraper. Tomato juice and tomato pulp flow out through the screen holes. Tomato skins and seeds are pushed to the discharge outlet.
The screen aperture and scraper angle are adjustable. Appropriate pulping speed and pulp fineness can be set according to the customer’s processing needs.

Consistent Quality: The commercial tomato pulp machine strictly controls the screen aperture.This ensures uniform tomato pulp texture and improves the consistency of the final product quality.
High Output: The tomato pulp machine features centrifugal pulping and a double-stage screening structure. This results in higher pulp extraction rates and reduced raw material waste.
High Automation: The large tomato pulp machine can be paired with tomato crushers, thickeners, and filling machines. It supports continuous production, forming a complete tomato processing line solution.
Reliable Brand Guarantee: Gelgoog holds multiple technology patents. The Gelgoog tomato pulp machine’s pulping and residue removal effect far surpasses similar products on the market.
Comprehensive Service: We provide one-stop service from site planning, installation and commissioning, operation training to maintenance.

Model	KW-DJ1-0.12	KW-DJ1-2.5	KW-DJ2-4	KW-MDJ2-4
Processing Capacity	50-120kg/h	1-2.5t/h	2-4t/h	1-2t/h
Power	1.5Kw 380V 50Hz	4Kw 380V 50Hz；	7.5Kw 380V 50Hz	7.5Kw 380V 50Hz
Material	Made of SUS304 (except for the transmission).
